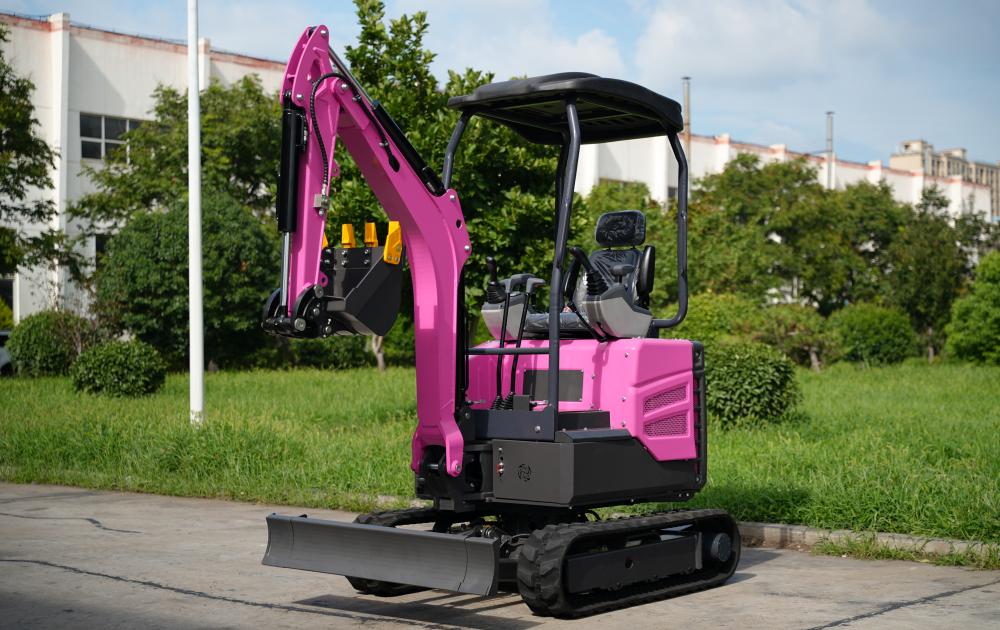

KV22 mini excavator: an all-round working partner for small and micro projects
KV22 is a 1.85-ton mini excavator specially built for small and micro projects such as orchard planting, municipal maintenance, and indoor construction, which has become the preferred equipment for lightweight construction scenarios with customized configuration, high adaptability and strong practicability.
The core configuration of the KV22 is very targeted, providing Laidong 380 and Kubota D902 dual engine options in terms of power, with a rated power covering 11.8kw-18.1kw, the former is suitable for domestic working conditions, durable and convenient to maintain, and the latter has international quality, stable power output and lower fuel consumption. The hydraulic system is equipped with Taifeng piston pump and load-sensitive multi-way valve, with a working pressure of 19.5Mpa, soft action and efficient response, and a hydraulic safety lock and pilot handle for higher operating accuracy. The fuselage function is equipped with a large arm side swing, a 980-1280mm retractable chassis and a 1.8-4.0km/h high and low speed walking mode, which is full of operation adaptability; In terms of protection, a ceiling is standard, and a cab can also be installed on demand, while the fuselage is made of Q355 manganese steel, with three cast iron counterweights, which has stronger operational stability. The basic operating parameters of the equipment are eye-catching, with a bucket capacity of 0.04m³, a maximum digging depth of 2324mm, a maximum excavation height of 2771mm, and a minimum turning radius of only 1387mm, which can easily complete all kinds of fine operations.
Relying on high-quality configuration, the KV22 has the following core advantages.
Strong space adaptability, retractable chassis + big arm side swing + tailless design, can be flexibly operated in narrow spaces such as orchard greenhouses, indoor sites, rural lanes, etc., without frequent movement of the machine;

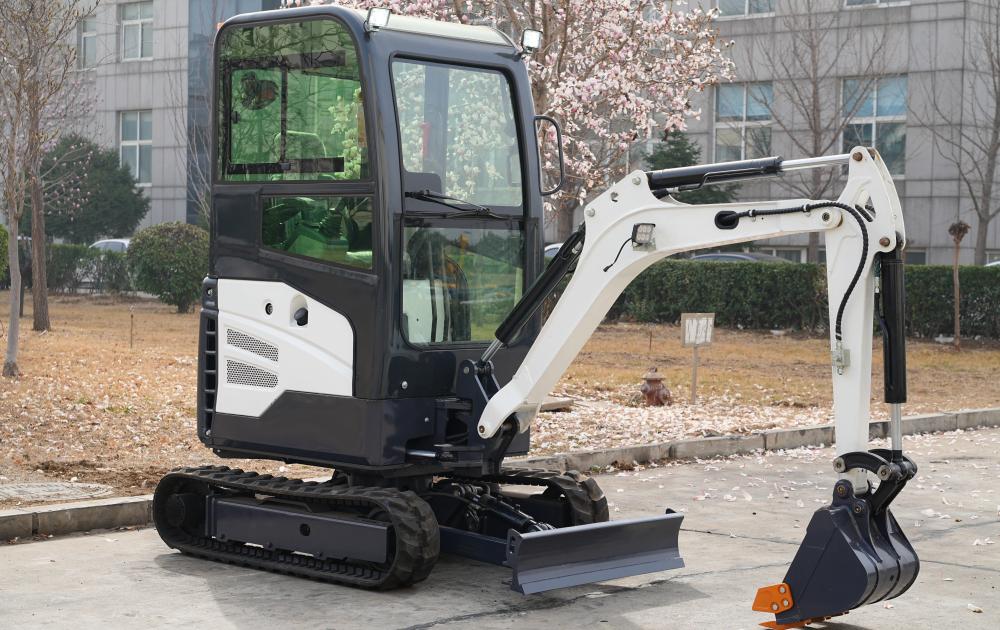

Both operation and practicality, high and low speed modes can be freely switched, low speed ensures stable operation, high speed improves transition efficiency, and the dual selection of roof/cab can adapt to different weather such as rainy days and high temperatures.
Durable and easy to maintain, manganese steel body and cast iron counterweight can cope with the wear and tear of complex working conditions, the core components are reasonably laid out, and daily inspection and maintenance do not require professional tools, reducing the cost of use.
The power selection is flexible, and the dual-engine configuration can not only meet the cost-effective needs of domestic small and medium-sized users, but also adapt to the quality requirements of foreign trade exports.
On the whole, the KV22 mini excavator is a cost-effective equipment with practicality as the core, although it is slightly lacking in intelligent configuration, but the core power, hydraulics, and body functions are in line with the actual needs of small and micro projects, taking into account the operation performance, space adaptability and use cost. Whether it is an individual grower, a municipal maintenance team or a small engineering team, KV22 can effectively replace manual labor, improve construction efficiency, and become an all-round operation partner for small and micro projects such as orchard excavation, indoor crushing, and municipal grooving
